CLA310
CLA310
Concerto
FEATURE
Component : Three Way 10 Double Woofer with 1.4 Throat MHF Drivers
Dimension :- height : 300mm
- width : 775mm
- depth : 440mm
Shape : 8 trapezoid
Weight Nett : 30kg
Connections : Neutrix Speakon
Construction : Birch and Tropical treated plywood for maximal rigidity and musicality
Front Finish : Metal Grill with black reacted powder coating

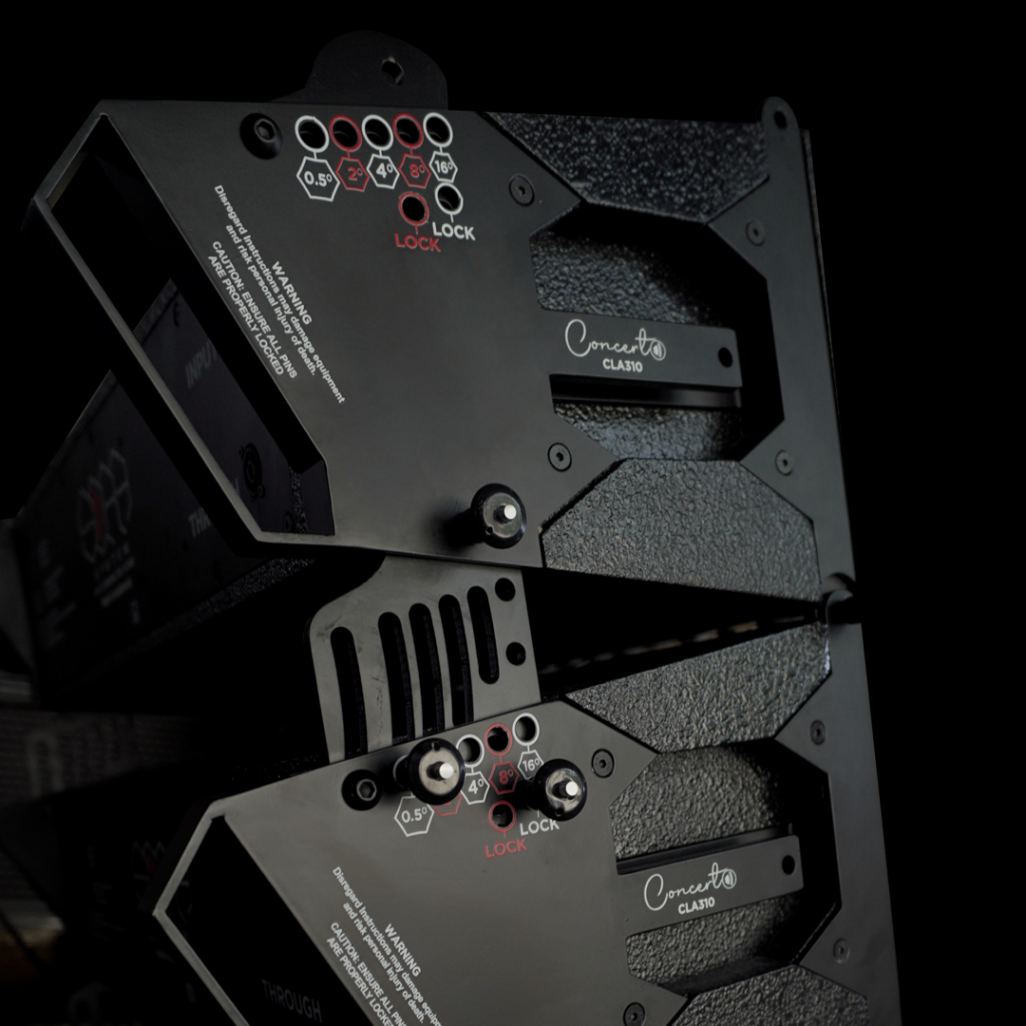

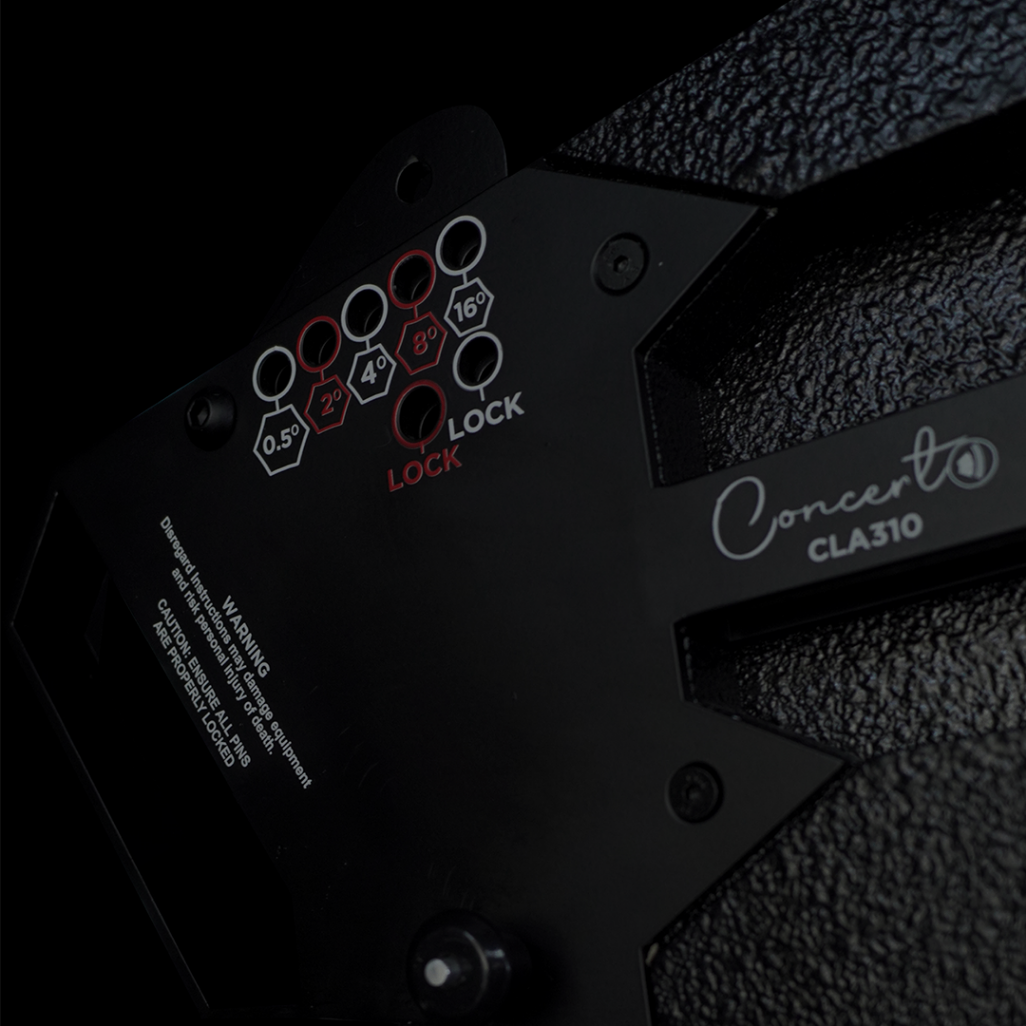

Flying Points : External SORA Rigging with angle adjustment = 0.5,2,4,8,16
SPECIFICATIONS
Frequency Response : 80Hz - 18kHz
Usable Range @-6dB : 63Hz - 20kHz
Sensitivity 1W @1m : LOW 96dB SPL, MHF 111dB SPL
Peak SPL @1m : 146dB Peak SPL
Peak Power Handling : 2000W
Continuous Power Handling : 500W
Dispersion : 16 degree x 120 degree
Crossover Frequency : LF 72Hz / MF 500Hz / HF 3600 Hz
Nominal Impedance : 16 Ohm LF, 16 Ohm MF, 16 Ohm HF
