CLA311
CLA311
Concerto
FEATURE
Component : Three Way 10' Woofer with 1.4' Throat MHF Drivers
Dimension :- height : 275mm
- width : 540mm
- depth : 340mm
Shape : 8 trapezoid
Weight Nett : 19,12 kg

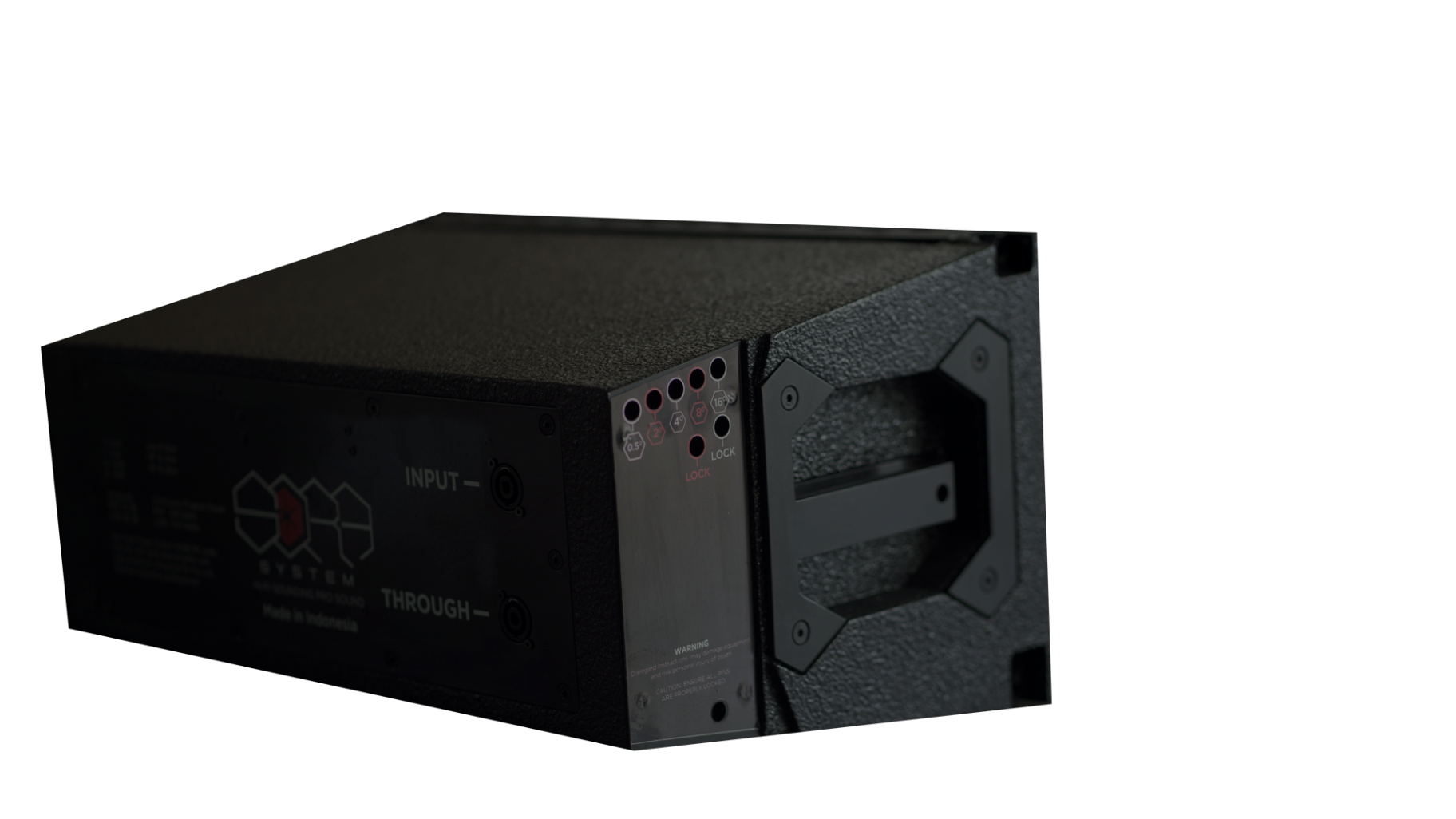

Connections : Neutrix Speakon
Construction : Birch and Tropical treated plywood for maximal rigidity and musicality
Front Finish : Metal Grill with black reacted powder coating

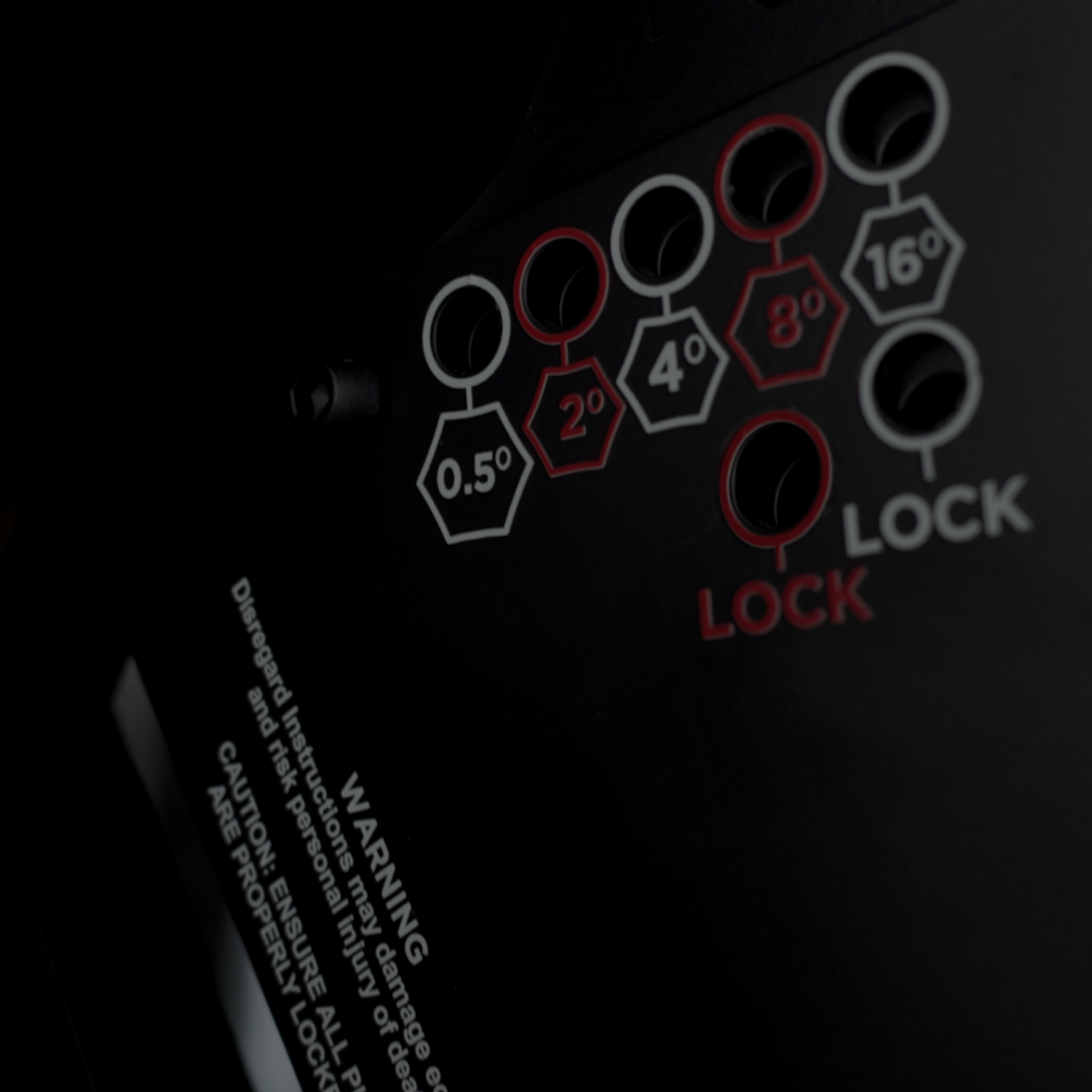

Flying Points : External SORA Rigging with angle adjustment = 0.5, 2, 4, 8, 16
SPECIFICATIONS
Frequency Response : 80Hz - 18kHz
Usable Range @-6dB : 63Hz - 20kHz
Sensitivity 1W @1m : LOW 96dB SPL, MHF 111 dB SPL
Peak SPL @1m : Configuration Dependent. Each Box 143dB Peak SPL
Peak Power Handling : 1000W
Continuous Power Handling : 250W
Dispersion : 16 degree x 120 degree
Crossover Frequency : LF 80Hz / MF 500Hz / HF 3600 Hz
Nominal Impedance : 16 Ohm LF, 16 Ohm MF, 16 Ohm HF
